YJJ TGS1820 Semiconductor Gas Sensor Is Used For Detecting CH₃COCH₃

Product Description:

YJJ TGS1820 Semiconductor Gas Sensor Is Used For Detecting CH₃COCH₃

Features:

Japanese FIGARO gas sensor TGS1820 is used to detect CH₃COCH₃:

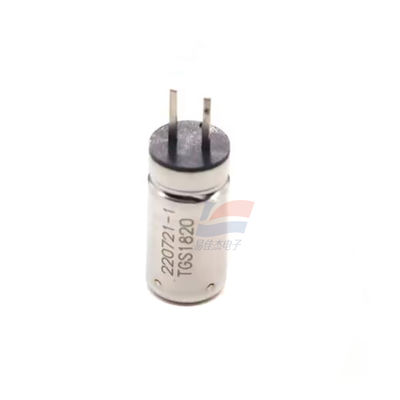

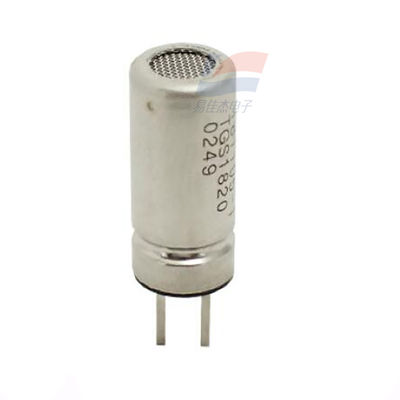

The TGS1820 is a type of hot-wire semiconductor gas sensor. Its sensitive element consists of a precious metal coil, which is embedded in a small sphere made of sintered metal oxide semiconductor material. Between the two ends of the precious metal coil, the change in conductivity caused by the adsorption of gas on the surface of the semiconductor material can be measured, which represents the change in the total resistance of the semiconductor material and the precious metal coil.
The TGS1820 has a high sensitivity to CH₃COCH₃ and is less affected by ethanol and hydrogen. Therefore, this product is an ideal choice for detecting CH₃COCH₃ in exhaled gas.
The characteristics of the Japanese FIGARO gas sensor TGS1820 for detecting CH₃COCH₃:
High sensitivity and high selectivity for CH₃COCH₃
Less interference from ethanol and hydrogen
Fast response
Small capacity
Low power consumption
The FIgaro gas sensor used for detecting CH₃COCH₃ in Japan
Application instructions for TGS1820:
CH₃COCH₃ detector
Breathing CH₃COCH₃ detector
This sensor has a very high sensitivity to CH₃COCH₃, while its sensitivity to alcohol and hydrogen is extremely low. Therefore, it has a very broad application prospect in detecting CH₃COCH₃ in exhaled gas.
"Fat combustion" is particularly important for weight loss. This is because when the available glucose in the body is exhausted, the body will burn its own fat to generate energy, which essentially forms a substance called "CH₃COCH₃". In essence, weight loss is getting the body into a state where it burns fat to produce "ketone bodies" and then utilizes them as an energy source.
The TGS1820 can help visualize this "fat combustion" process.

Specifications:
