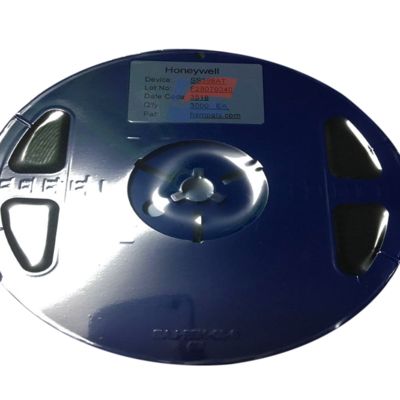

YJJ SS398AT Linear Hall Sensor For UAV Pan-Tilt Unit - Solid State SOT-23

Product Description:

SS398AT Linear Hall Sensor For UAV Pan-Tilt Unit - Solid State SOT-23

Features:

FEATURES AND BENEFITS

• Operating Voltage Range: 2.8V~6.0V

• Power consumption of 3.3mA at 5 VDC for energy efficiency

• Low-Noise output

• Linear output for circuit design flexibility

• Totem-Pole for a stable and accurate output

• Responds to either positive or negative gauss

• Small SOT-23 package for SMD

• Robust ESD performance

DESCRIPTION

SS398AT, a linear Hall-effect sensor, is composed of Hall sensor,linear amplifier and Totem-Pole output stage. It features low

noise output, which use an external capacitance. It also canprovide increased temperature stability and accuracy. The linear

Hall sensor has a wide operating temperature range of -40°C to+125°C, appropriate for commercial, consumer, and industrial

environments.

The high sensitivity of Hall-effect sensor accurately tracksextremely weak changes in magnetic flux density. The linearsourcing output voltage is set by the supply voltage andin proportion of vary of the magnetic flux density. That isproportional to the applied magnetics and features a null voltageoutput of half of the applied voltage.The SOT-23 package is a three-lead mini SMD in SMT process.

SS398AT is fast response time, wide output range, stable andaccurate of Totem-Pole linear output of hall IC.

• DMOS Hall Effect Sensor

• Supply Voltage 2.8 ~ 6.0V

• Sensitivity 2.0mV/G

• Output Totem-Pole

• Package SOT-23

APPLICATIONS

• Current sensing

• Motor control

• Position sensing

• Vibration sensing

• Liquid level sensing

• Weight sensing

• Magnetic code reading

• Rotary encoder

• Ferrous metal detector

Power supply voltage: 3.5 to 8 volts

Working current: 5A

Operating voltage: 15V

Storage temperature: -65 to 150℃

Power supply current: 3.3mA

Resolution: 2.0 mV/G

Sensor type: Bipolar

Inductive range: 25

Work Point (BOP): 0 - 10

Characteristic: Low power consumption

Applicable product: Neck-mounted fan

Specifications:
