CSCA0100A000B15B01 Hall-effect Based Open-loop Current Sensor For UPS Communication Power Supplies

      CSCA0100A000B15B01 Hall-effect Based Open-loop Current Sensor For UPS Communication Power Supplies

Product Details:

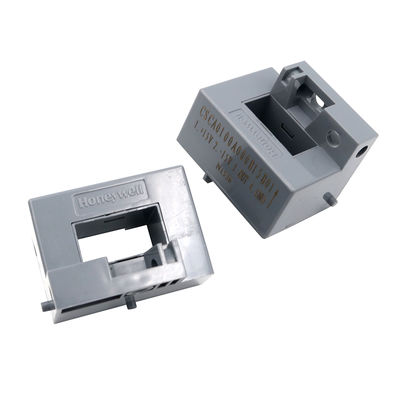

CSCA0100A000B15B01 is a Hall-effect based open-loop current sensor , The detailed specifications are as follows:

Basic Parameters:

• Rated Current: 100A RMS (at 25℃).
• Measurement Range: ±300A.
• Measuring Resistance: At 70℃ (with ±15V, ±25A.t max): Min. 54ohm, Max. 360ohm.
• Analog Output Current: 25mA.
• Turn Ratio: 1000.
• Accuracy (at 25℃): Max. ±0.5% (including zero offset effect).
• Supply Voltage: ±12~15V (±5%).

Parameters:

• Sensor Type: Hall effect, open-loop.
• Output Type: Analog.
• Output Resistance: >10k ohm.
• Operating Temperature: -10℃ to 80℃.
• Storage Temperature: -25℃ to 85℃.

Performance Features:

• Based on Hall Effect Principle: Utilizes Hall effect devices, whose output voltage is linearly related to the amplitude and phase of the applied magnetic field, enabling accurate measurement of AC, DC, and pulse currents.
• Low Power Consumption: Meets energy-saving requirements with low power consumption.
• Good Electrical Isolation: Provides high-level electrical isolation between primary and secondary circuits for safe and reliable operation.
• Fast Response Speed: Response time is typically in the microsecond range, enabling quick response to current changes.

Application Fields:

Suitable for variable speed drives, overcurrent protection, UPS and communication power supplies, current feedback control systems,

robotics,and other fields.

Packaging and Connection:

• Adopts Molex-type connector for easy installation and connection.
• Usually mountable via flanges, offering certain mechanical stability.
