YJJ WF100DP Digital Pressure Sensor Is Used In Automotive Electronics Field

Product Description:

WF100DP Digital Pressure Sensor Is Used In Automotive Electronics Field

Features:

KEY FEATURES:

Piezo-resistive silicon micro-machined sensor

Gauge type pressure sensor

I2C / SPI Interface

Pressure range: 100KPa(5KPa/10KPa/20KPa/40KPa/100KPa/200KPa/300KPa

Pressure Sensitivity: 0.027 Pa/LSB

24 Bit Σ-Δ ADC

Temperature Compensation: -40℃ ~ 125℃

Operating voltage 3.0V/(5.0V)

Operating mode current: ~0.6mA (typical)

Sleep Mode current: 0.1uA (typical)

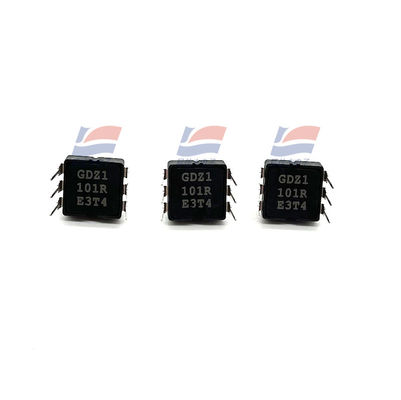

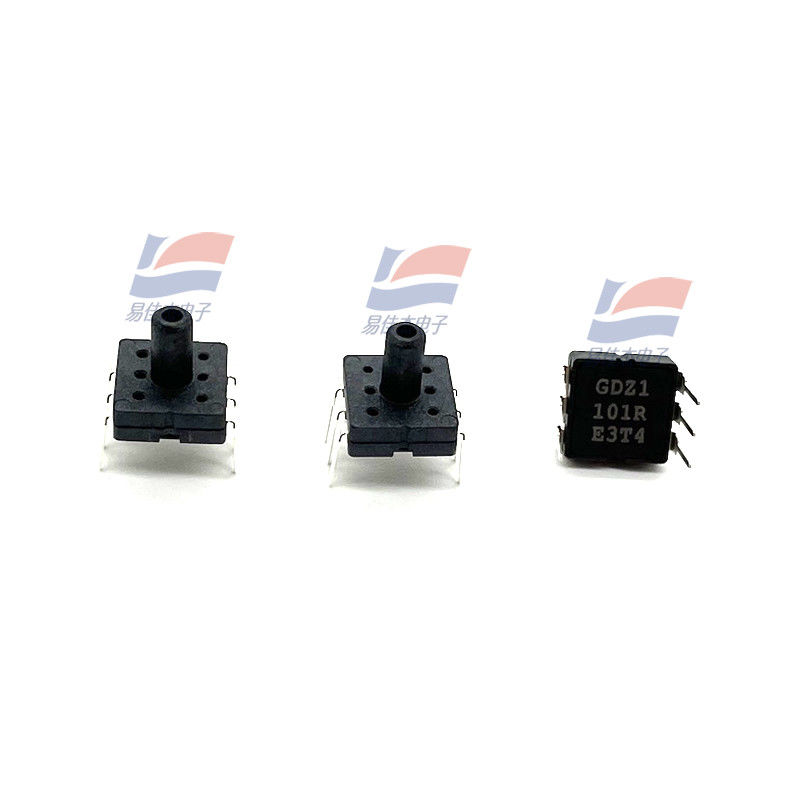

SOP6 or DIP6 package

RoHS compliant and Halogen-free

PRODUCT INTRODUCTION:

WF100DP series product is the pressure sensor which measures gauge pressures. It consists of a silicon micro-machined sensing element chip and a signal conditioning ASIC. The ASIC is equipped with a 24-bit resolution Σ-Δ ADC and outputs a highly precise pressure value as a digital value.

WF100DP series products provides digital output interface. It can achieve ESD robustness, fast response time, high accuracy and linearity as well as long-term stability. All measurement data is fully calibrated and temperature compensated. In addition, it allows for easy system integration.

This series pressure sensor use SOP6 or DIP6 package which is suitable for lots application.

APPLICATION

Automobile electronic

Consumer electronics

Household electronic

Industrial monitor and control

Medicine care
